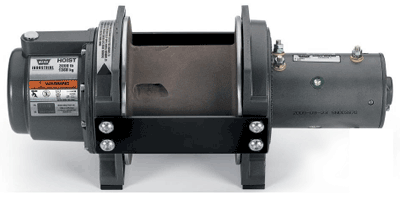

WARN DC3000-LF-12V Industrial Hoist

The WARN DC3000 hoist combines a powerful series wound DC motor with robust sealing and our proven 3-stage all metal gear train. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC3000 hoist is built on WARN's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity. Controls and accessories available separately.

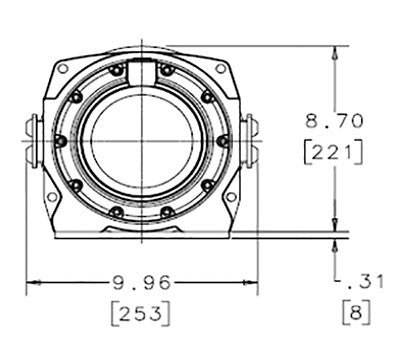

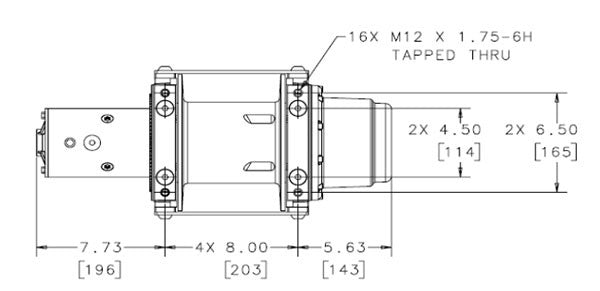

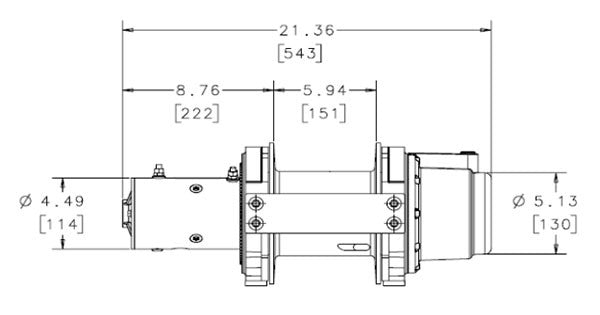

DC3000 SPECS/PART NUMBERS
Part Number: 85251 12V - Controls and Accessories Available Separately
Rated Capacity: 3000 lbf (1361 kgf)
Drum Barrel Diameter: 5.31 in (135 mm)
Drum Flange Diameter: 8.9 in (226 mm)
Distance Between Flanges: 5.94 in (151 mm)
Recommended Maximum Wire Rope Diameter: 5/16 in (7.9 mm)
Recommended Minimum Wire Rope Breaking Strength: 10540 lbf (4781 kgf)
Approximate Shipping Weight: 83.0 lbs (37.6 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 35 - 40 ft*lbf (47 - 54 N*m)
Maximum Layers of Wire Rope: 4
Gear Reduction: 199
Brake Type: Automatic Disc
Contactor/Remote Type: Not Included
Standards Compliance:
CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC
ASME B30.5
ACCESSORIES

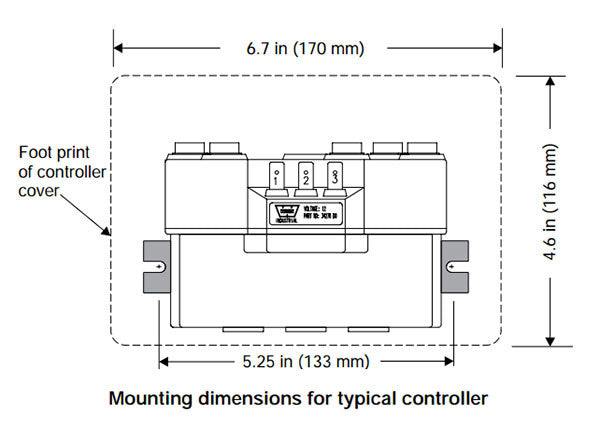

Control Pack-12V: PN 39602
Contactor Only-12V (Standard bracket): PN 34969
Contactor Only-12V (w/ bracket for cover): PN 34975
Contactor Cover (with remote plug): PN 36648
Contactor Cover (no plug): PN 35169
Remote Control Only: PN 88528

PERFORMANCE BY LAYER - 12V
Drum Layer Line Load * No Load Line Speed Drum Capacity
lbf kgf kN ft/min m/min ft m
1 3000 1361 13.3 30.4 9.3 25 7.6
2 2700 1225 12.0 33.7 10.3 54 16.5
3 2454 1113 10.9 37.1 11.3 85 25.9
4 2250 1021 10.0 40.5 12.3 119 36.3
* Never exceed the Rated Capacity. Installation of a Rated Capacity Limiter is recommended.

FIRST LAYER PERFORMANCE - 12V
Line Load Current Draw Line Speed Duty Cycle
lbf kgf Amps ft/min m/min min/10min
0 0 87 30.4 9.3 5.0
600 272 116 23.3 7.1 3.4
1200 544 143 19.5 5.9 2.5
1800 816 172 16.8 5.1 2.1
2400 1089 202 14.8 4.5 1.7
3000 1361 231 13.2 4.0 1.5

Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.
