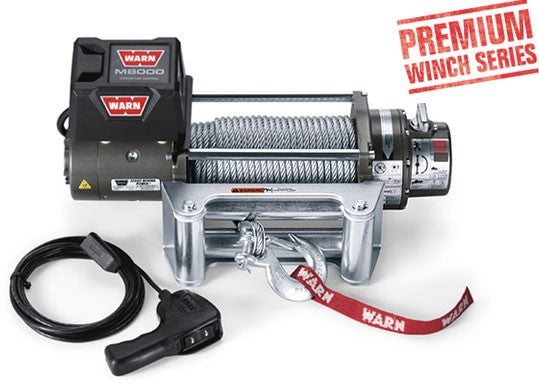

The M8 winch has been trusted by off-roaders for over twenty years. This 8,000 lb. capacity winch offers outstanding reliability and value. Its low-profile design allows for a variety of mounting options, making it perfect for most trucks, Jeeps and SUVs.
Premium Series winch that delivers classic design, proven performance, and legendary WARN reliability

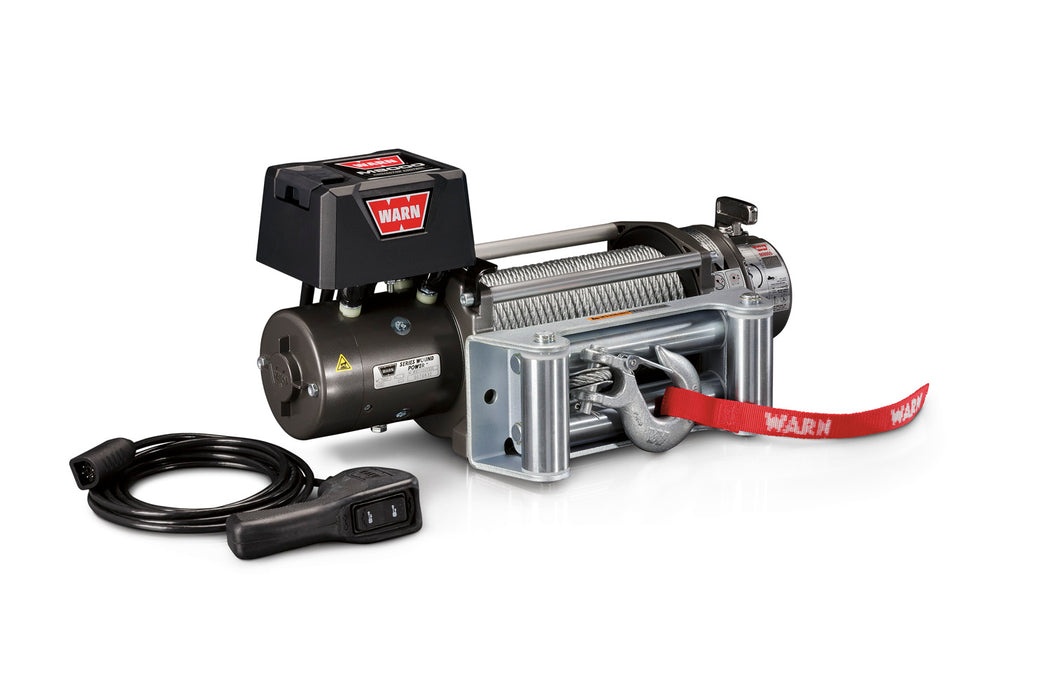

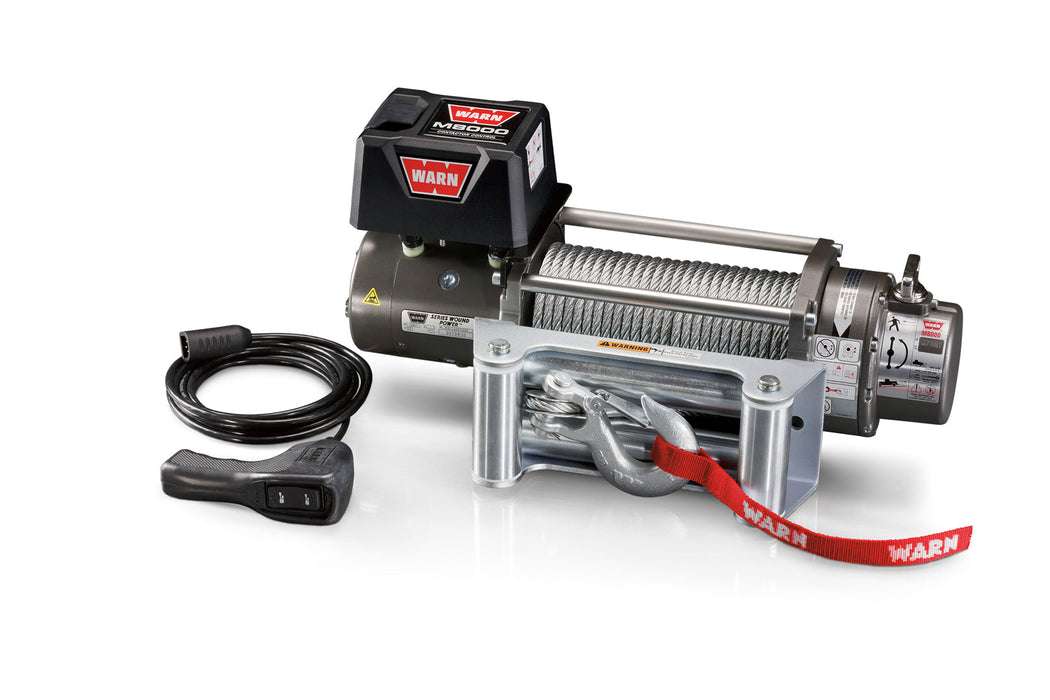

Contactor control box and hand-held, corded remote control
Low-profile design and separate control box allows for a wide range of mounting options
Exclusive brake design provides superior control while winching

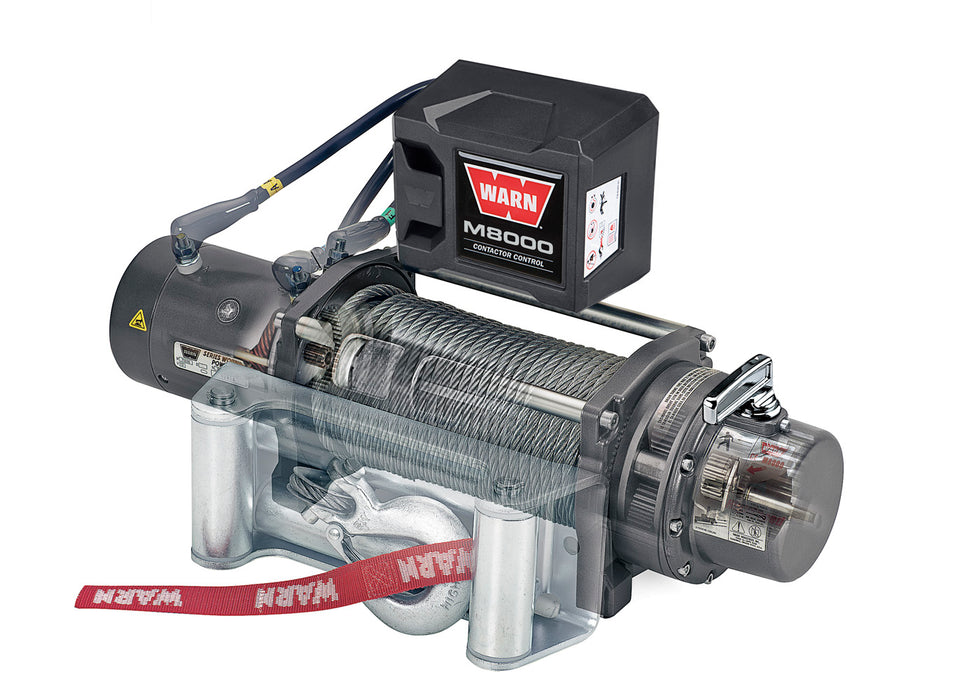

Durable 3-stage planetary geartrain for smooth, reliable, operation
Series-wound, high-speed motor provides fast line speed and strong
pulls
Chip-resistant powder-coated finish
100' of steel or synthetic rope
M8 SPECS/PART NUMBERS
Winch model: M8
Part number: 26502 (wire rope, 12V)
Part Number: 88502 (wire rope, 12V, CE, International sales only)
Rated line pull: 8,000 lbs., (3630 kgs.) single-line
Motor: Series Wound, 12V 4.8 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Gear train: 3-Stage Planetary
Gear ratio: 216:1
Clutch (freespooling): Sliding ring gear
Brake: Automatic mechanical cone
Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight: 74 lbs. (34 kgs)
Rope: Steel -- 100', 5/16" diam. (30m, 8mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Argent gray powder coat
12V DC PERFORMANCE SPECS
Line Pull Lbs.(Kgs.)
Line Speed FT./min(M/min.)
Motor Current
Pull by layer layer/Lbs(Kgs.)
0
30.2 (9.20)
80 amps
1/8000 (3629)
2000 (910)
14.2 (4.33)
200 amps
2/7280 (3302)
4000 (1810)
9.9 (3.02)
285 amps
3/6670 (3026)
6000 (2720)
7.3 (2.22)
350 amps
4/6230 (2826)
8000 (3630)
4.8 (1.46)
435 amps
Above performance specs are based on first layer of drum

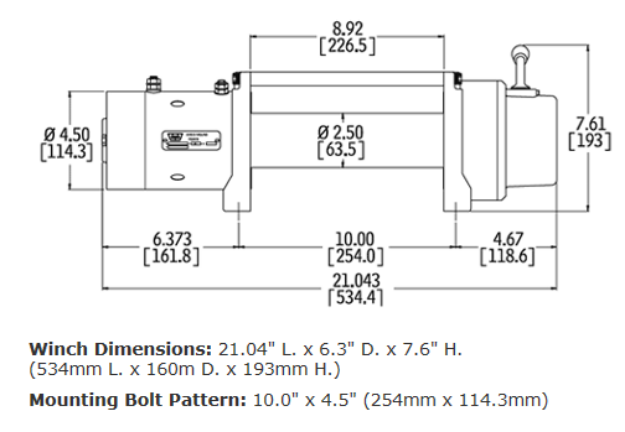

Winch Dimensions: 21.04" L. x 6.3" D. x 7.6" H. (534mm L. x 160m D. x 193mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
Winch Dimensions: 21.04" L. x 6.3" D. x 7.6" H. (534mm L. x 160m D. x 193mm H.) Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
