WARN 27550 XD9000i Winch

WARN 27550 XD9000i Winch

by Warn
Sold out
$ 0.00 - $ 0.00
$ 0.00
$ 2,404.89
$ 2,404.89 - $ 2,404.89
$ 2,404.89
SKU WRN-27550
Availability:
Out of stock

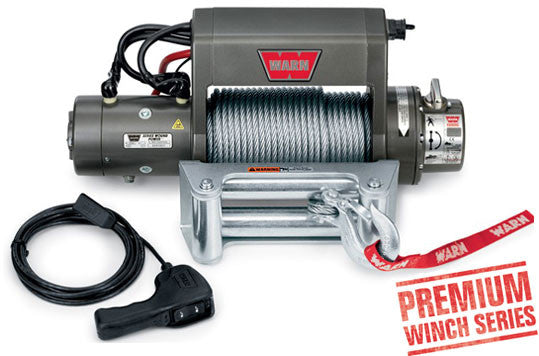

WARN XD9000i Winch

WARN XD9000i
Fast and reliable in real trail conditions
No-load retrieval line speed of 38' per minute. Integrated solenoid. Runs cool with low amp draw for long winching duty cycles. Comes with 125' of 5/16" wire rope.
  • Integrated control box provides excellent protection to electronics
  • Exclusive brake design provides superior control while winching
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Chip-resistant, powder-coated finish
  • Remote control with 12' (3.7m) lead
  • Durable 5/16" (8mm) diameter galvanized steel wire rope.
XD9000i SPECS/PART NUMBERS
Part Numbers: 27550
Winch Model: XD9000i
Rated Line Pull: 9,000 lbs. (4080 kgs) single-line
Motor: Series Wound 12V 4.6 hp
Electrical controls: Solenoid
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 156:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum diameter/Length: 2.5" /9.0" (6.4cm/23cm)
Weight: 85 lbs. (38.5kgs.)
Wire rope: 125', 5/16" dia. (38m, 8mm)
Fairlead: Roller
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat
12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)		 Line Speed
FT./min(M/min.)		 Motor
Current		 Pull by layer
layer/Lbs(Kgs.)
0 38 (11.58) 56 amps 1/9000 (4082)
2000 (910) 15 (6.8) 161 amps 2/8190 (3715)
4000 (1810) 10.3 (3.14) 252 amps 3/7500 (3402)
6000 (2720) 7.5 (2.29) 332 amps 4/7010 (3180)
8000 (3630) 5.1 (1.55) 423 amps
9000 (4080) 3.9 (1.19) 478 amps
Above performance specs are based on first layer of drum
Winch Dimensions: 21.8" L. x 6.3" D. x 9.9" H. (553mm L. x 160mm D. x 254mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
