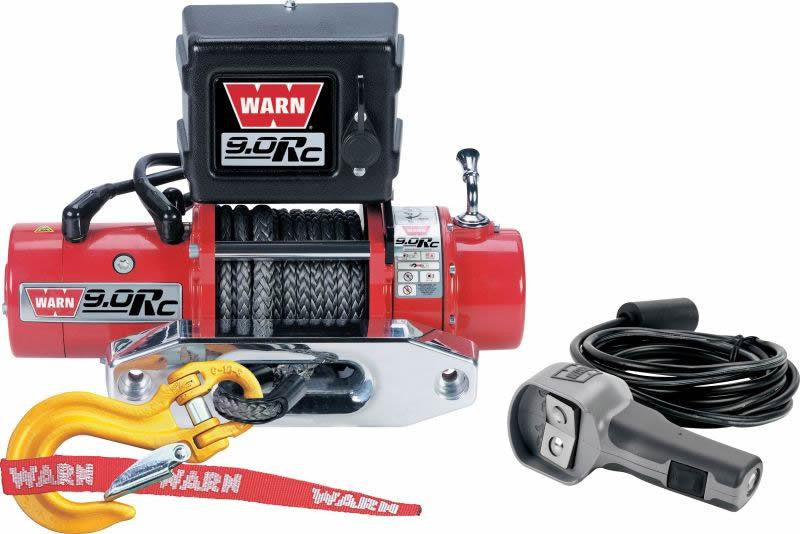

WARN 71550 Winch, 9.0Rc 12v

WARN 71550 9.0Rc 12 Volt Winch

by Warn
Sold out
$ 0.00 - $ 0.00
$ 0.00
$ 2,527.66
$ 2,527.66 - $ 2,527.66
$ 2,527.66
SKU WRN-71550
Availability:
Out of stock

WARN 9.0Rc 12 Volt Winch

This item ships direct from WARN, please call for availability!


WARN 9.0Rc
A compact, lightweight winch for rock sports
Competitive rock crawling means tackling tough climbs, intense approach angles and tight turns. That's why rock crawling rigs need a low-profile, lightweight winch like the WARN 9.0Rc that delivers maximum power in a compact, 54-lb. unit. The 9.0Rc is a winch built for rock crawlers looking for efficiency, reliability and legendary WARN performance.
  • 4.8 hp series wound motor delivers 9,000 lbs. of pulling capacity, and fast line speed under load
  • Next-generation control pack delivers long duty cycles
  • New-style remote control
  • 50' of 3/8" (15 m of 9.5 mm) diameter synthetic rope combined with a rugged, 360-degree swivel hook and thimble
  • Ballistic nylon sliding sleeve that provides extra rope protection against abrasion and wear
  • Aluminum hawse fairlead
  • Exclusive multi-segment cam actuated brake for positive operator control during winching
  • Gloss red paint with primer undercoat gives superior corrosion resistance
9.0Rc SPECS/PART NUMBER
Winch Model: WARN 9.0Rc
Part Number: 71550
Rated Line Pull: 9,000 lbs. (4080 kgs) single-line
Motor: Series Wound, 12V 4.8 hp
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-Stage Planetary
Gear ratio: 216:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic mechanical cone brake
Drum diameter/Length: 2.75 in/4.75 in (7.0cm/12cm)
Weight: 54 lbs. (24.8kgs.)
Rope: 50 ft, 3/8 in (15m, 9.5mm) Spydura synthetic Rope
Fairlead: Polished Aluminum Hawse
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 in (1.83m)
Finish: Gloss red paint over primer undercoating
PERFORMANCE SPECIFICATIONS
Line Pull
Lbs.(Kgs.)		 Line Speed
FT./min(M/min.)		 Motor
Current		 Pull by layer
layer/Lbs(Kgs.)
0 32 (9.75) 85 amps 1/9000 (4082)
2000 16 (4.88) 187 amps 2/7280 (3302)
4000 11.4 (3.47) 284 amps 3/6670 (3026)
6000 8.9 (2.71) 367 amps 4/6230 (2826)
8000 6.8 (2.07) 458 amps
9000 5.6 (1.70) 408 amps

Above performance specs are based on first layer of drum
Winch Dimensions: 16.8" L. x 6.3" D. x 7.6" H. (427mm L. x 160mm D. x 194mm H.)
Mounting Bolt Pattern: 6" x 4.5" (151mm x 114.3mm)



Buy with confidence from Montana Jack's, we are your WARN Authorized Warranty and Service Center.
We are a Factory Direct WARN Distributor and we stand behind our WARN products for the full manufacturer's warranty period.

WRN-71550
