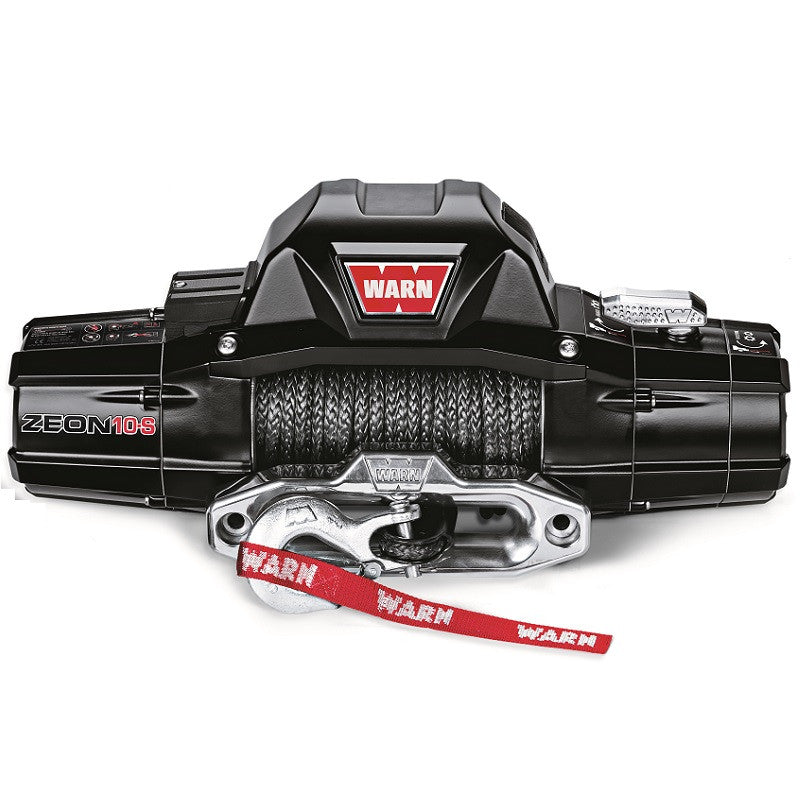

WARN 89611 Zeon 10-S Truck Synthetic Winch, Spydura Rope

WARN 89611 Zeon 10-S Truck Synthetic Winch, Spydura Rope, Lifetime Warranty!

by Warn
$ 0.00 - $ 0.00
$ 0.00
$ 1,583.07
$ 1,583.07 - $ 1,583.07
$ 1,583.07
SKU WRN-89611
Availability:
3 in stock, ready to be shipped

WARN® ZEON® 10-S

10,000 lbs. of cutting-edge pulling muscle
Choose your way to conquer the terrain. The ZEON 10-S is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 lbs. single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.
  • 10,000 lb. (4536 kg) single-line pulling capacity.
  • Includes 100' of 3/8" WARN Spydura synthetic rope, a temperature-resistant sleeve on the first layer, a ballistic nylon sliding sleeve for abrasion resistance, and a polished aluminum hawse fairlead
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks. (Relocation kit required and sold separately*)
  • Updated planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power.
  • Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
  • Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
  • Backed by the WARN Limited Lifetime Warranty
*Control Pack Relocation Kit. Required to mount control box remotely from winch. PN 89970 (Short kit), PN 89960 (Long kit)
ZEON 10-S SPECS/PART NUMBER
Part number: 89611
Rated line pull: 10,000 lbs. (4536 kg) single-line
Motor: 12V DC, series wound
Electrical controls: Contactor
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 216:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic mechanical cone
Drum diameter/Length: 3.15"/9.0" (80mm/229mm)
Weight (kit shipping): 75 lbs. (34 kg)
Rope: 3/8" x 100' (9.5mm x 30.5m) Spydura synthetic
Fairlead: Hawse
Recommended Battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finish: Satin-black powder coat
Warranty: Limited lifetime mechanical, 7 year electrical
12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)		 Line Speed
FT./min(M/min.)		 Motor
Current		 Pull by layer
layer/Lbs(Kgs.)
0 33 (10.27) 62 amps 1/10000 (4536)
2000 (910) 14.9 (4.5) 144 amps 2/8245 (3740)
4000 (1810) 11.2 (3.4) 215 amps 3/7014 (3181)
6000 (2720) 8.5 (2.6) 280 amps 4/6103 (2768)
8000 (3630) 6.5 (2.0) 353 amps
10000 (4536) 4.8 (1.5) 409 amps
Above performance specs are based on first layer of drum
Winch Dimensions:
Integrated configuration: 24.25" L x 7.15" D x 10.52" H
(615.9mm L x 181.6mm D x 267.1mm H)
Low-profile configuration: 24.25" L x 7.15" D x 7.84" H
(615.9mm L x 181.6mm D x 199.02mm H)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
